FP Pilot Mill

Application

FP pilot mill is designed for milling tubular components (tubing, drill pipes, couplings, tool joint, liners, packers) during remediation at oil, gas and exploration wells.

Design

The pilot mill is available in left- and right-hand configuration.
The pilot end of the mill centralizes the main mill in the ID of the fish being milled.

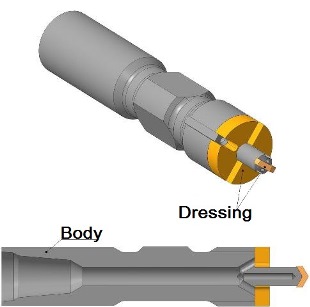

Images and Dimensions

Technical data

To cart	Code	Length, ft	Length of pilot, ft	Connection, API	Diameter of mill, in	Diameter of pilot, in	Thickness of dressing, in	D of flushing port, in	Weight, lb
	FP-86/38	1.12	0.41	NC 16	3.4	1.5	0.71	0.47	14.77
	FP-90/38	1.38	0.56	NC 16	3.56	1.5	0.79	0.63	22.93
	FP-92/47	1.38	0.56	NC 16	3.62	1.85	0.79	0.63	23.59
	FP-99/47	1.38	0.56	NC 16	3.91	1.85	0.79	0.63	25.8
	FP-103/47	1.38	0.56	NC 26	4.06	1.85	0.79	0.63	26.9
	FP-108/47	1.38	0.56	NC 26	4.24	1.85	0.79	0.63	29.33
	FP-110/47	1.38	0.56	NC 26	4.32	1.85	0.79	0.63	30.21
	FP-112/47	1.38	0.56	2-7/8 Reg	4.4	1.85	0.79	0.63	34.4
	FP-114/47	1.38	0.56	2-7/8 Reg	4.48	1.85	0.79	0.63	35.06
	FP-116/47	1.38	0.56	2-7/8 Reg	4.56	1.85	0.79	0.63	36.16
	FP-118/47	1.38	0.56	2-7/8 Reg	4.65	1.85	0.79	0.63	37.93
	FP-120/57	1.38	0.56	2-7/8 Reg	4.72	2.24	0.79	0.63	39.03
	FP-130/57	1.38	0.56	2-7/8 Reg	5.13	2.24	0.79	0.63	43.0
	FP-136/57	1.38	0.56	2-7/8 Reg	5.37	2.24	0.79	0.63	46.31
	FP-140/57	1.38	0.56	3-1/2 Reg	5.52	2.24	0.79	0.63	50.94
	FP-146/74	1.38	0.56	3-1/2 Reg	5.74	2.91	0.79	0.79	53.8
	FP-150/74	1.38	0.56	3-1/2 Reg	5.9	2.91	0.79	0.79	55.57
	FP-156/74	1.38	0.56	3-1/2 Reg	6.13	2.91	0.79	0.98	57.99
	FP-164/74	1.38	0.56	3-1/2 Reg	6.44	2.91	0.79	0.98	62.4
	FP-168/74	1.38	0.56	3-1/2 Reg	6.6	2.91	0.79	1.26	64.83
	FP-180/85	1.64	0.74	NC 50	7.11	3.35	1.18	1.97	102.09
	FP-187/85	1.64	0.74	NC 50	7.11	3.35	1.18	2.2	108.27
	FP-191/85	1.64	0.74	NC 50	7.52	3.35	1.18	2.64	116.42
	FP-206/85	1.64	0.74	NC 50	8.13	3.35	1.18	2.64	124.14
	FP-212/85	1.64	0.74	NC 50	8.37	3.35	1.18	2.64	127.23
	FP-216/85	1.64	0.74	NC 50	8.52	3.35	1.18	2.76	130.98

You can specify the size of an item on the checkout page.
